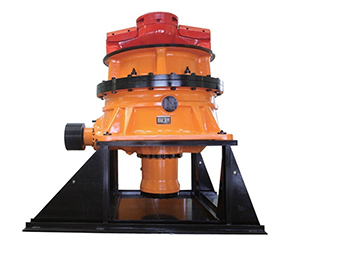

Single cylinder hydraulic cone crusher

Detailed introduction

Single cylinder hydraulic cone crusher obtains the advantages of high tech large capacity high automation energy saving and easy maintenance in crushing machinery. Shanbao DY/DYS cone crusher
has only one hydraulic cylinder who attaches one hydraulic device (that is Security cylinder). The discharging opening adjustment is through the up-and-down floating of main shaft to adjust the location
of crushing cone part.And ittakes PLC control.

DY/DYS Single cylinder hydraulic cone crusher is suitable to crush medium and above hardness oresand rocks with compressive strength below 300Mpa.And it is widely applied in metallurgical

industrybuilding materialindustryconstruction industry and chemical industry.

The main part consists of

1. Hopper
2. Top shell
3.Crushing part

4. Bottom shell

5.Sealing
6. Eccentric sleeve
7. Driving part
8. Hydraulic cylinder

Paramerers:

•Using laminating crushing theoryfine granularity
•The introduction of dustproof structure and hydraulic protection device
•Adopt curved bevel gear to prolong the gear service life
•Alternative various eccentricities and chamber types
•Choose PLC control
